An application tool for DIET platforms.
VizDIET is a tool written in Java for the graphical representation of traces retrieved from LogService. The graphical representation is built with the Java library OpenJGraph, a library which simplifies the drawing of graphs, hypergraphs, etc. VizDIET can register with the LogService for real-time updates on the status of a running DIET platform. For post-mortem analysis of DIET experiments, VizDIET can build the same view using a file of traces stored by a LogService tool. The graphical representation is automatically reorganized during the addition or suppression of nodes.
In the longer-term, VizDIET will be extended to incorporate a graphical interface for GoDIET, thus providing a greater interactivity between the tools.
Questions about VizDIET can be directed to Raphael Bolze

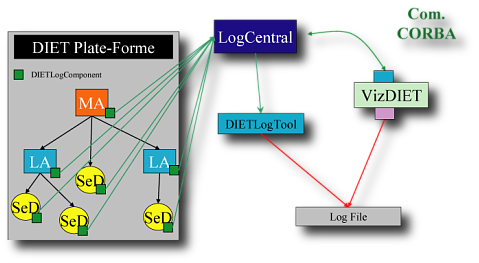

MAs, LAs, and SeDs send Logs information to LogCentral thanks to LogService, DIETLogTool is connected to LogCentral via CORBA and write in a file, logs sent by LogCentral. VizDIET reads this Logfile and creates a graph representing the DIET platform.
MAs, LAs, and SeDs logs information to LogCentral thanks to LogService, VizDIET connects itself directly to LogCentral via CORBA and creates the graph representing the DIET platform.
